Home » Our Products » Magnetic Stirrer » Magnetic Stirrer

Magnetic Stirrer

Leading Supplier and Trader from New Delhi, our product range includes Magnetic Stirrer such as Rotamantles Stirrer and Electromagnetic Stirrer.

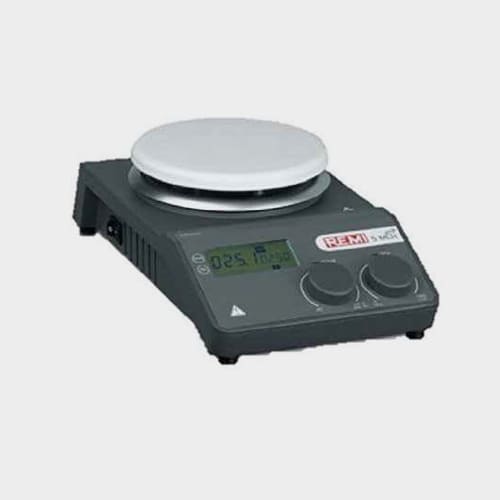

Magnetic Stirrer



Item Code: 10-MLH-Plus
The stainless steel top housing series of Magnetic Stirrer is most compact models.
Specification:
Model 10 ML plus 10 MLH plus
Power (W) 50 1050
Stirring Paddle (PTFE coated) Q-20A (13 x 50mm) Q-20A (13 x 50mm)
Motor rating input (W) 18 18
Motor rating output (W) 10 10
Speed range (rpm) 100-1500 100-1500
Speed / Temperature display LCD LCD
Speed display resolution (rpm) 1 1
Top Plate Material Glass Ceramic Glass Ceramic
Dimension of Top Plate (mm) 184 x 184 184 x 184
Heating power (W) - 1000
Temperature Range - Up to 550°C
Control accuracy of heating temperature - 1°C
Residual Heating Warning Alarm - Above 50°C
Control accuracy of heating temperature with PT-1000 - 0.2°C
External Temperature sensor - PT-1000
Dimensions (WxDxH) (mm) 360x215×112 360x215×112
Weight (kg) 5.3 5.3
Protection class acc. to DIN EN60529 IP 21 IP 21

Rotamantles Stirrer

These are specially designed to meet laboratory requirement of convenient stirring in flask with simultaneous uniform heating by heating mantles. These have two tier constructions with the upper compartment consisting of heating element. Accurate stepless speed control allows smooth variation up to 1200 rpm. Heating energy is controlled by energy regulator.
Technical Data:
Models Stirring Capacity Healing Capacity External Dlmensions Stirring Paddle (PTFE Coated)
Ltrs Watts (W x D x H)) mm Model ø x Length
1 RML 1 300 210 x 210 x 205 Q-19 9 x 25 mm
2 RML 2 400 260 x 260 x 240 Q-19A 9 x 35 mm
3 RML 3 500 300 x 300 x 260 Q-20A 13 x 50 mm

Electromagnetic Stirrer

This Electromagnetic Stirrer is ideally suitable for titration & general lab. mixing of solution. They incorporate superior stepless speed controller to control the speed from 100 to 650 RPM.

Salient Features:
  • No moving parts or motor.
  • Reverse control provides automatic change of direction.
  • Excellent.speed stability despite viscosity or volume changes.
  • Stirring capacity upto 1000 ml
Technical Data:
Models Stirring Capacity Healing Capacity External Dlmensions Stirring Paddle (PTFE Coated)
1 EMS 1 - 170 x 175 x 60 Q-19
